Allegro® Full Face Masks - Parts Guide
Part Numbers
9901 (Low Pressure) & 9902 (High Pressure)
Style
Full Mask Supplied Air Respirators (SAR)
General Description:
This comfortable full mask offers low pressure continuous flow protection. It has a unique over-the-shoulder hose design and an adjustable belt, which holds the hose out of the way. It's durable and easy to use and clean. One of our all-time faves.

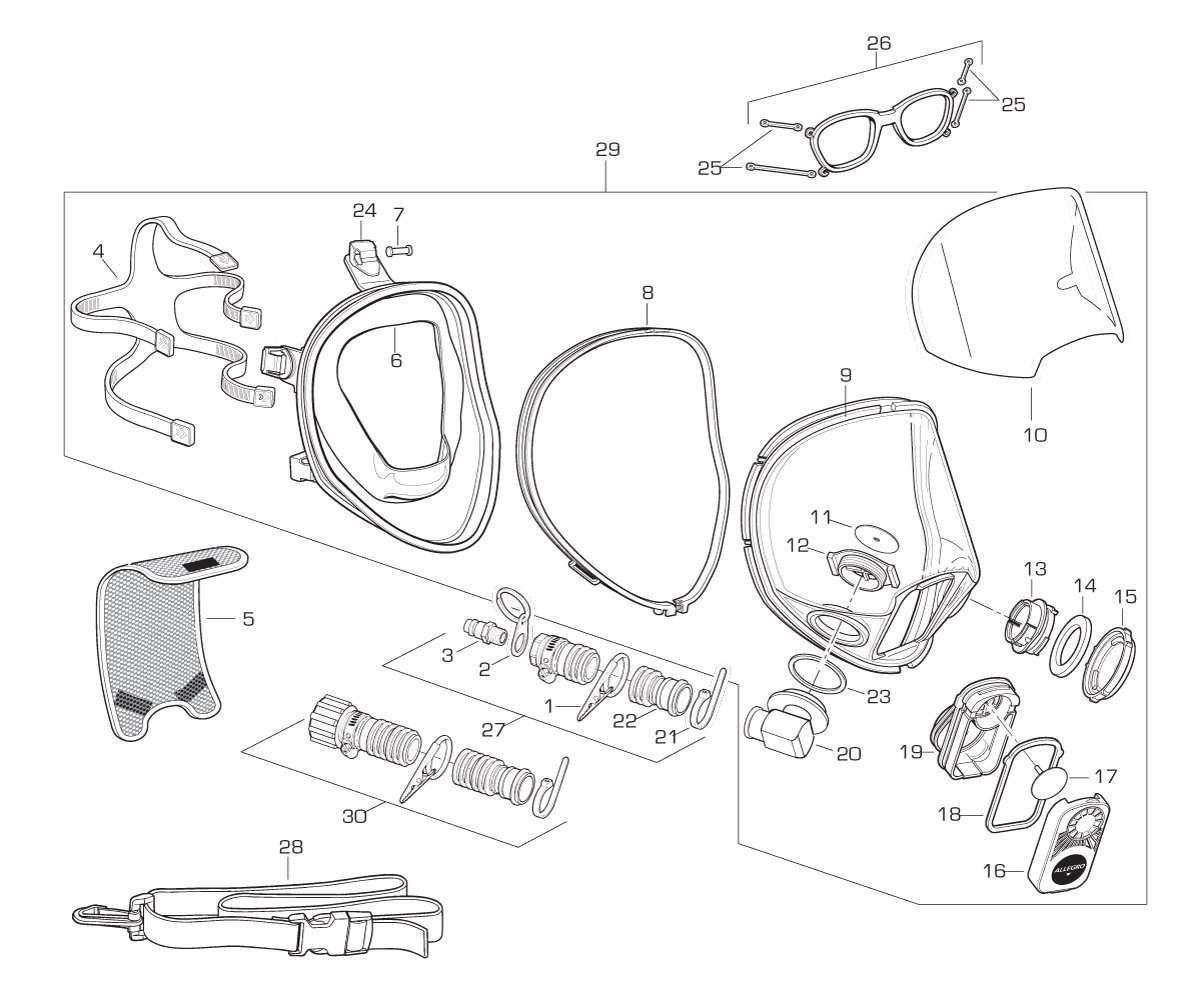

| Key | Part # | Description |
| 9901 | Full Mask SAR (LP) | |
| 9902 | Full Mask SAR (HP) | |
| 1 | 9900-09 | Alligator Clip Assembly |
| 2 | 9900-15 | Key Ring & Metal Tab Assembly |
| 3 | 9700-73B | Plug (OBAC) (LP) |
| 4 | RP164 | 5 Point Head Band Suspension |
| 5 | 9901-02 | Hairnet |
| 6 | 9901-13 | Full Face Mask Skirt |
| 7 | 9901-12 | Head Band Suspension Pin |
| 8 | 9901-09R | Lens Retainer (Screw & Nut Inc.) |
| 9 | 9901-09L | Replacement Lens |
| 10 | 9901-25 | Lens Peel-Offs (25 pkg) |
| 11 | 9901-3B | Inhalation Valve |
| Key | Part # | Description |
| 12 | 9901-03A | Elbow Adapter Retainer |
| 13 | 9901-11A | Bayonet Connector |
| 14 | 9901-11B | Bayonet Connector Gasket |
| 15 | 9901-11C | Bayonet Connector Cover |
| 16 | 9901-08 | Exhalation Valve Cover |
| 17 | 9901-07 | Exhalation Valve |
| 18 | 9901-07A | Exhalation Valve Gasket |
| 19 | 9901-07B | Exhalation Valve Housing |
| 20 | 9901-04 | Full Face Elbow Adapter |
| 21 | 9900-01N | Plastic Tie Wrap |
| 22 | 9900-73B | Breathing Tube |
| 23 | 9901-05 | Elbow Adapter Gasket |
| 24 | 9901-14 | Suspension Buckle |
| Key | Part # | Description |
| 25 | 9901-06B | Support Bands |
| 26 | 9901-06 | Spectacle Kit |
| 27 | 9920-01A | Breathing Tube Assembly (LP) |
| 28 | 9900-02 | Waist Belt w/Clip |
| 29 | 9901-10 | Full Face Mask Skirt Assembly |
| 30 | 9902-01 | Breathing Tube Assembly (HP) |
| 9901-20 | Fit Test Kit - QLFT (Not Shown) | |
| 9901-21 | Fit Test Kit - QNFT (Not Shown) | |
| 9920-01 | Breathing Tube Assembly w/ Waist Belt | |
| (Includes #27 and #28 LP Only) |
