DAD-500™ Desiccant Air Dryer System
Model Number
DAD-500
Order Number
130026
General Description:
3-stage desiccant air filtration system that eliminates moisture and dirt in air lines. Easily capable of reducing air humidity to nearly zero, which makes for much better spray conditions. Since bed liner products do tend to react to moisture in the air, keeping the filtration system well maintained is an absolute necessity.

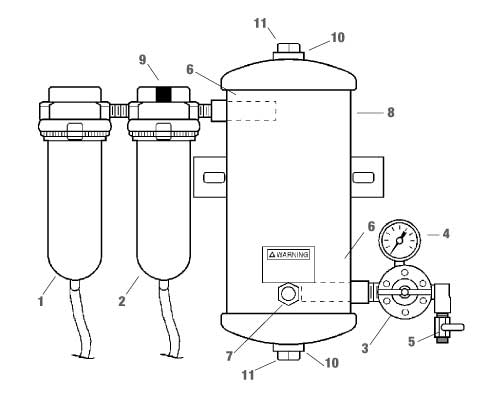

| Ref # | Order # | Model # | Description | Ind. Parts Req. |
| 1 | 130041 | 13-0041 | Water Separator Filter | 1 |
| 2 | 130027 | HAF-505 | Oil Coalescing Filter | 1 |
| 3 | 130059 | HAR-507 | Air Regulator | 1 |
| 4 | 190564 | GA-288 | Gauge | 1 |
| 5 | 240039 | VA-542 | Ball Valve | 1 |
| 6 | 190953 | DAD-8 | Air Filter (inside of tank) | 2 |
| 7 | 190895 | DAD-400 | Humidity Indicator (paper included) | 1 |
| 8 | 190877 | PT-417 | Desiccant Tank (w/o desiccant) | 1 |
| 9 | 190883 | HAF-404 | Filter Change Indicator | 1 |
| + | 190831 | DAD-1 | Desiccant Refill | 1 |
| + | 190727 | HAF-6 | Filter | 1 |
| + | 190845 | HAF-28 | Filter | 1 |
| 10 | 802153 | SSG-8217-K2 | O Ring Kit | 1 |
| 11 | 802154 | PT-96 | Pipe Plug special 1-1/2 NPT | 2 |
| 12 | 801288 | VA-595 | Brass Shut Off Valve (not shown) | 1 |
Key Maintenance Items
| Order # | Model # | Description |
| 190831 | DAD-1 | Desiccant Refill |
| 190727 | HAF-6 | First stage water separator filter element (5 microns) |
| 190845 | HAF-28 | Second stage coalescing filter element (.01 microns) |
Specifications:
Shipping Weight DAD-500: 35 lbs.
Dimensions DAD-500: 22" x 17" x 18"
13-0041 (HAF-502) Water Separator Filter
| Air Inlet & Air Outlet | 1/2" NPT(F) |
| Air Flow Capacity | 100 CFM |
| Max Operating Pressure | 150 PSIG (10,3 Bar) |
| Max Temperature | 150°F (65.6°C) |
| Automatic Drain | Standard |
| Filter | 5 micron |
HAF-505 Oil Coalescing Filter
| Air Inlet & Air Outlet | 1/2" NPT(F) |
| Air Flow Capacity | 55 CFM |
| Max Operating Pressure | 150 PSIG (10,3 Bar) |
| Max Temperature | 150°F (65.6°C) |
| Automatic Mechanical Drain | Standard |
| Pressure Differential Indicator | Standard |
| Filter | 0.01 micron |
HAR-507 Air Regulator
| Air Inlet | 3/8" NPT(F) |
| Air Outlet | 1/4" NPT(F) (3 each) |
| Air Flow | 60 CFM |
| Max Operating Pressure | 150 PSIG (10.3 Bar) |
| Max Temperature | 120˚F (48.9˚C) |
Desiccant Dryer
| Air Inlet & Air Outlet | 1/2" NPT(F) |
| Air Flow Capacity | 25 CFM |
| Max Operating Pressure | 150 PSIG (10,3 Bar) |
| Max Temperature | 150°F (65.6°C) |
| Humidity Indicator | Standard |
| Water Vapor Removal | -40°F Dew Point |
VA-595 Main Air Supply Shut Off Valve (not shown)
| Air Inlet & Air Outlet | 1/2" NPT(F) |
| Max Operating Pressure | 175 PSIG (12.0 Bar) |
Tune-Up Kit 130030 (DAD-600)
| Model # | Description | Qty. |
| DAD-1 | Desiccant Refill | 1 |
| HAF-6 | Filter Element for 13-0041 | 1 |
Tune-Up Kit 802182 (DAD-600-1)
| Model # | Description | Qty. |
| DAD-1 | Desiccant Refill | 1 |
| HAF-6 | Filter Element for 13-0041 | 1 |
| HAF-28 | Filter Element for HAF-505 | 1 |
